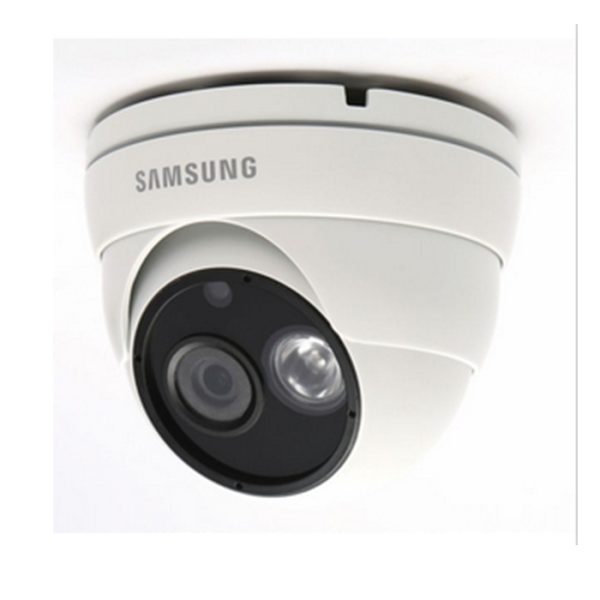

Samsung SCDL2023RP High Resolution 750TVL IR Indoor Camera
Original price was: 4,500.00৳ .3,500.00৳ Current price is: 3,500.00৳ .

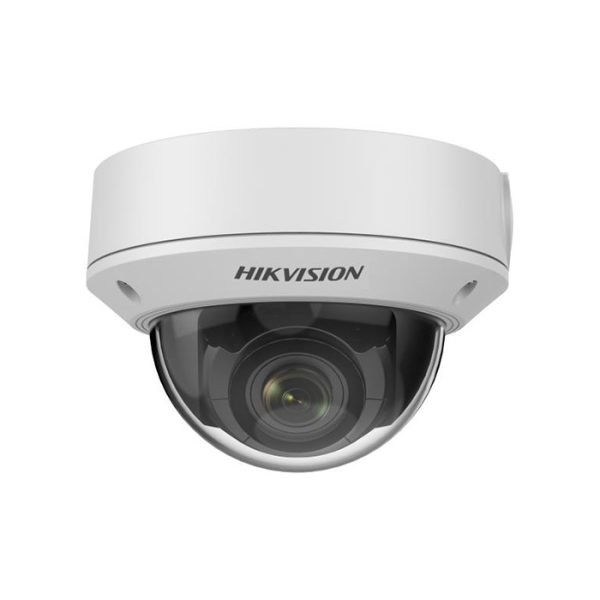

Hikvision DS-2CD1723G0-I(Z) 2MP Varifocal Dome Network Camera with PoE & IR Night Vision
Original price was: 8,500.00৳ .7,900.00৳ Current price is: 7,900.00৳ .
Wisenet HRX-435 4CH Hybrid DVR 2SATA (Up to 12TB HDD Supported)
Brands:
Wisenet
3
People watching this product now!
Key Features:
- 5-in-1 Pentabrid DVR supporting AHD, HDTVI, HDCVI, CVBS, and IP cameras
- Max Analog 4CH + Network 6CH, up to 8MP resolution
- H.265, H.264, MJPEG compression for efficient storage
- Up to 8/8fps @ 8MP, 12/12fps @ 5MP recording
- Dual monitor support via HDMI and VGA
- Coaxial control and P2P service (QR code connect)
- Max 2 SATA HDDs (up to 12TB)
- Full-featured event management with smart analytics (Face Detection, Motion, Tampering, VA events)
- Multi-platform access: CMS, Web, Wisenet Mobile, iOS, Android
- Easy setup with Wizard and P2P QR code configuration
Price:
Original price was: 30,000.00৳ .27,500.00৳ Current price is: 27,500.00৳ .
| Specification | Details |
|---|---|
| Product Name | Wisenet HRX-435 4CH Hybrid DVR |
| Type | 5-in-1 Hybrid DVR (Pentabrid) |
| Video Input (Analog) | 4CH BNC (1Vp-p, 75Ω) |
| Video Input (Network) | Max. 6CH |
| Supported Analog Signals | AHD (8MP, 5MP, 4MP, 1080p, 720p), HDTVI (8MP, 5MP, 4MP, 1080p, 720p), HDCVI (5MP, 4MP, 1080p, 720p), CVBS (NTSC/PAL) |
| Resolution (Analog) | 8MP @ 8/8fps, 5MP @ 12/12fps, 4MP @ 15/12fps, 2MP/1MP/960H/720H @ 30/25fps per channel |
| Resolution (Network) | Up to 8MP |
| Protocols Supported | SUNAPI (Wisenet), ONVIF |
| Local Display | HDMI x1, VGA x1 (simultaneous output) |
| HDMI Resolution | 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 |
| VGA Resolution | 1920×1080, 1280×1024, 1280×720 |
| Recording Compression | H.265, H.264, MJPEG |
| Max Recording Bandwidth | 30Mbps |
| Recording Modes | Manual, Schedule (Continuous/Event), Event (Pre/Post) |
| Event Triggers | Motion detection, Video loss, Tampering, Sensor input, VA events (Enter/Exit, Virtual Line, Face Detection, Audio detection, Defocus, Dynamic events) |
| Event Actions | E-mail, PTZ preset, Alarm out, Buzzer, Monitor output |
| Playback | Max 6CH simultaneous (Local Monitor, CMS, Wisenet Mobile), 1CH via Web |
| User Access | Max. 4 users (Local 1, Remote 3) |
| Storage | 2x SATA HDDs up to 6TB each (Max 12TB) |
| Backup Options | BU, EXE (with player), AVI (Webviewer only) |
| PTZ Control | GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smartphone Support | iOS, Android |
| Network Protocols | TCP/IP, UDP/IP, RTP (UDP/TCP), RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF, SUNAPI |
| Audio Input/Output | 4 Line In / 1 Line Out, 2-Way Communication |
| Audio Compression | G.711, G.726 (Network camera) |
| Security | IP filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup), Device Certificate |
| Alarm I/O | 4 Input, 2 Output (Relay) |
| USB | 2x USB 2.0 (Front) |
| Serial Ports | RS-485/422 (PTZ control) |
| Power | DC 12V, Max 40W (with HDDs) |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC |
| Dimension (WxHxD) | 370 x 44 x 320 mm |
| Weight | Approx. 2.3 Kg (with 1x 4TB HDD) |
| Color / Material | Black / Metal |
| Coaxial Control | CVBS (Pelco-C), AHD, HDCVI, HDTVI |
The Wisenet HRX-435 4CH Hybrid DVR is a versatile, high-performance Pentabrid DVR that supports analog and network cameras. It delivers crisp video up to 8MP resolution and is capable of recording with H.265/H.264/MJPEG compression to optimize storage. With dual monitor output via HDMI and VGA, flexible event handling, and smart analytics, it ensures comprehensive surveillance coverage. Supporting up to 2 SATA HDDs for storage (12TB total), P2P connectivity, and multi-platform access via Wisenet Mobile and CMS, the HRX-435 is ideal for small to medium security installations. Its robust build, coaxial control support, and advanced video management features make it a reliable and future-ready security solution.
Wisenet HRX-435 4CH Hybrid DVR FAQs
1. What types of cameras are supported by the HRX-435?
The HRX-435 supports 5-in-1 cameras: AHD (up to 8MP), HDTVI (up to 8MP), HDCVI (up to 5MP), CVBS (analog, NTSC/PAL), and IP cameras (up to 6CH).
2. How many channels can be recorded simultaneously?
It can record up to 4 analog channels plus 6 network camera channels simultaneously, with resolutions up to 8MP.
3. What video compression formats are supported?
The DVR supports H.265, H.264, and MJPEG formats, allowing efficient storage and high-quality recording.
4. How much storage can the DVR support?
It has 2 SATA HDD slots, supporting up to 6TB each, for a total maximum storage of 12TB.
5. Can I view the cameras remotely on my smartphone?
Yes, the HRX-435 supports remote viewing via Wisenet Mobile on iOS and Android devices.
6. What are the local display options?
It offers HDMI and VGA outputs, both capable of simultaneous output. HDMI supports up to 4K resolution (3840×2160), and VGA supports up to 1920×1080.
7. Does it support PTZ cameras?
Yes, PTZ cameras can be controlled via GUI, Webviewer, SmartViewer, System Controller, or Wisenet Mobile. Coaxial control is also supported.
